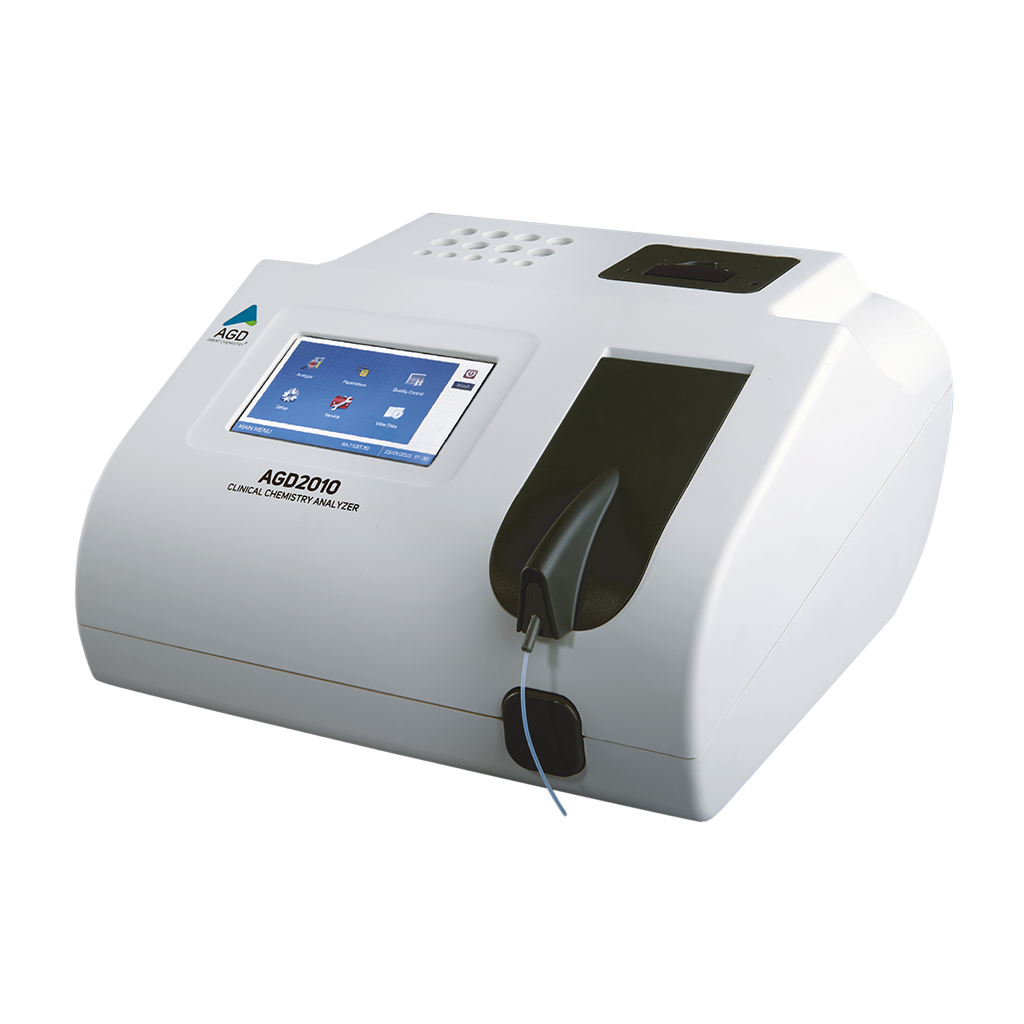

AGD-2010 Semi-Automatic Clinical Chemistry Analyzer
SEMI AUTOMATED BIOCHEMISTRY ANALYZER
₹120000.00₹100000.00
Out of stock
AGD 2010 is a compact, convenient, new generation analyzer most suitable for medium and small sized laboratories, also as a backup for large laboratories or hospitals.
Salient Features
245 test parameters
5″ graphic resistive touchscreen colour display
Tri-Level Quality Control with L-J plot
Storage of 20000 test results with reaction curve
Online reaction Curve
Inbuilt Incubator – 8 positions for Test tube and 5 positions for coagulation tubes
Technical Specifications
Parameter | Description |
|---|---|
Assay Types | Absorbance, End point, Kinetic, Fixed Time, Endpoint with Sample Blank and Coagulation |
Wavelength | 6 Filters: (340nm, 405nm, 505nm, 546nm, 578nm, 630nm) and provision to add 2 filter ± 10nm |
Bandwidth | 10nm ±2nm |
Absorbance Range | Upto 3.000 Abs |
Flow Cell | 18µL / 32µL |
Aspiration Volume | 300µL to 1000µL |
Cuvette | Semi Micro Cuvette |
Cuvette Volume | 500 µL |
Memory | 245 programs, 20000 test records with Reaction Curve |
Light Source | 6V/10W, Tungsten Halogen Lamp |
Temperature Control | 25, 30 & 37° C by Peltier Effect |
Quality Control | L-J Plot of Tri-level control with daily and monthly data |
Display |
|
Built-in Printer | 2″ Graphic Thermal Printer (can be switched ON/OFF, when desired) |
Interface | Two USB ports for External Keyboard/ Mouse |
Operating Condition |
|
Storage Condition | 10°C to 50°C, Altitude: Below 3000 Meter |
Inbuilt Incubator | Incubator for 8 test tubes & 5 coagulation tubes |
Battery Back-up | Battery back-up for the instrument - Optional |
Dimension | 315mm (L) x 290mm (B) x 175mm (H) |
Weight | 6.5 Kg (approx.) |
Power Consumption | 50 Watts (max) |
Power Supply | 110-240V AC±10%, 50/60Hz ± 3Hz |
Calibration Curve | Linear, Multipoint and non-linear calibration upto 6 standards with calibration curve like cubic spline, exponential, parabola etc. |
