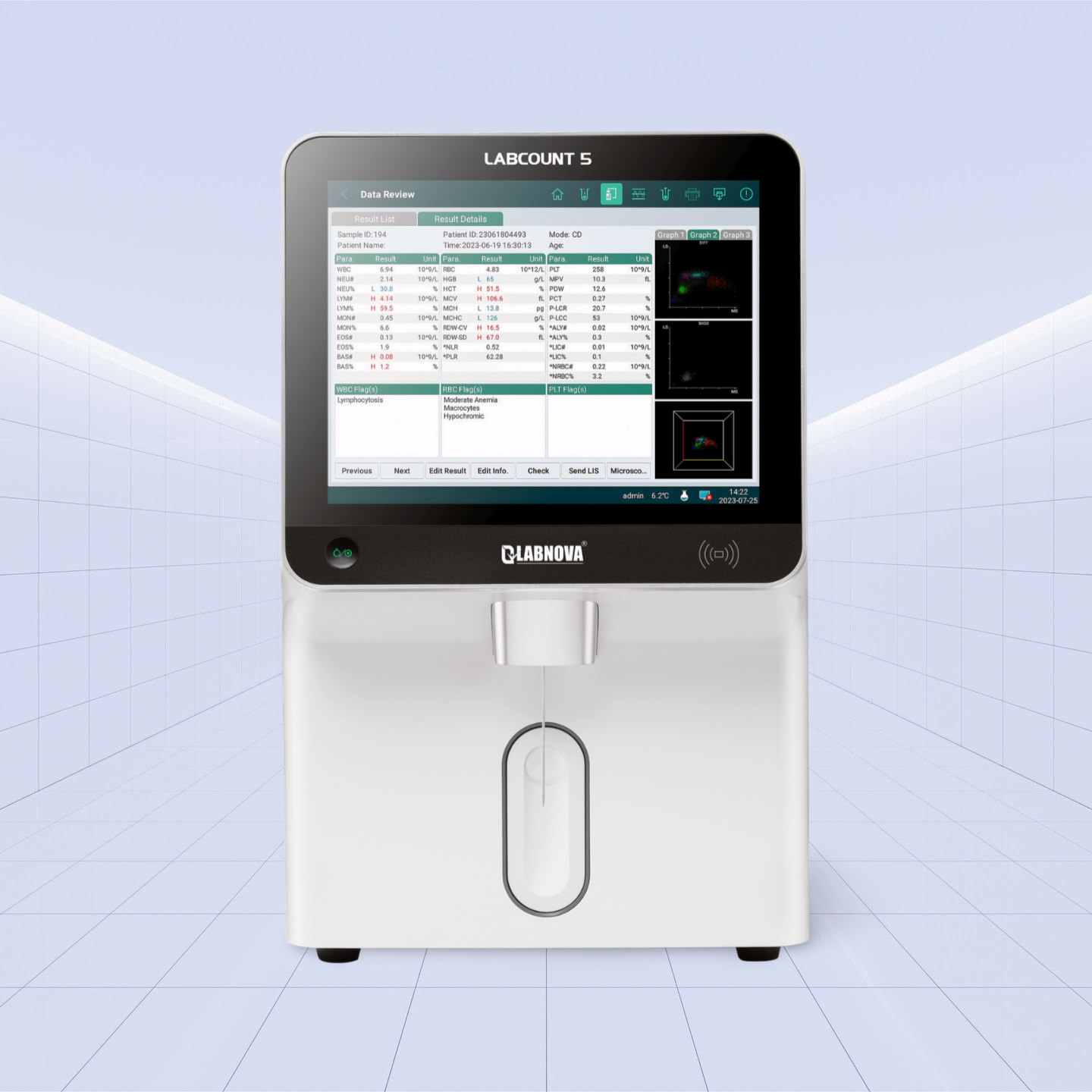

Labcount 5 Analyzer
5-Part Hematology Analyzer
₹450000.00₹425000.00
Out of stock
5-Part Hematology Analyzer: This indicates that the analyzer is capable of performing a 5-part differential blood count. In hematology, a 5-part differential count refers to the analysis of white blood cells (leukocytes) into five different types: neutrophils, lymphocytes, monocytes, eosinophils, and basophils. This detailed analysis provides valuable information about the patient’s immune system and can aid in the diagnosis and monitoring of various diseases and conditions.
Technical Specifications
Performance | Specification & Features |
|---|---|
Parameters | WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC. |
Principles | • Tri-angle laser flow cytometry analysis for WBC, DIFF and BASO counting |
Sample Volume | Whole blood 16 μL, Capillary 16 μL, Pre-diluted 20 μL |
Reagent | Hd500 20L Diluent, HL500 Lyse 500mL/1L, Hc310 Cleaner 50mL |
Control and Calibrator | PA-50D, PA-CAL PLUS |
Throughput | 60 samples per hour |
Data Storage Capacity | 100,000 results including results and histograms 60 QC files (100 data per file) |
Interface | 12 inch colorful touch screen |
Operating Environment | Temperature : 15OC~32OC Humidity : 30% RH~85% RH: Air pressure : 70 kPa~106 kPa |
Dimension and Weight | 501(D)x320(W)x502.5(H), Weight: 29.3kg |
Performance
Parameter | Linearity Range | Precision (CV % |
|---|---|---|
WBC(109/L) | 0.0-500 | <3.0% (3.50~7.00) |
RBC(10¹²/L) | 0.0-8.5 | <1.5% (3.5~6.5) |
HGB(g/L) | 0-250 | <1.5% (100~180) |
PLT(109/L) | 0-4000 | <5.0% (100~500) |
Discription
LABCOUNT 5, we are a new player in the IVD field, while we are well known around the world for the excellence of our medical products. We are a successor in hematology, whereas we are not a follower. We are, as USUAL, to provide professional service and trustable performance to reshape your experience
We are on a journey to understand your needs, solve your challenges and provide a better solution. Our fundamental goal is to make sure our products truly meet your needs without generating an extra burden. And this is about design.
A good design includes everything, which influences the entire user experience. Our answer is Elegant Design as USUAL. Within our Elegant Design concept, we are emphasizing five tenets to enhance your experience
BRIGHTEN YOUR HEMATOLOGY LIGHTEN YOUR WORK
People who work in the laboratory deserve great respect and attention. It’s a challenging job with a high workload and fast response. Every day, with patients and physicians counting on you, you have no space for error and hardly have time to breathe, so you have to be focused at all times. Having the right instrument is the ultimate solution
We invent the requirements and explore the pain points to develop a new concept in hematology. The hematology approach has been in the market for decades, but many challenges haven’t been tackled. Adapted to the fundamental but significant appeal points, the LABCOUNT 5 series can well suit your needs
The LABCOUNT 5 series are positioned in low to moderate volume laboratories, committed to lightening your work with an enjoyable experience. Equipped with an integrated, intuitive operation system, it brings a reliable system with clinical values and effective cost control. The LABCOUNT 5 series is tailored to you.
INTUITIVE SYSTEM THAT SIMPLIFIES YOUR HANDLING
The system that stands out
The system that stands out The LABCOUNT 5 features a whole set of user-oriented functions that are hard to find elsewhere. Its android-based system has a similar experience as a smartphone – pleasure-to-operate and easy-to-use. You can get to any functionality within two steps. The 12-inch colorful touch screen makes working with H60S and viewing its results exceptionally straightforward
Outstanding graphic interface
The user interface is undoubtedly the most visible and best-appreciated feature of the LABCOUNT 5 series. Different set-up views, each optimized for various user situations, facilitate routine use. The most common include a sample view showing classic graphs and all parameters within one page. The other sample view features the most practical reference bar display that indicates the results’ status. The comprehensive information on the short-cut menu bar and status bar give you fast access to any primary function.
Communicate and print like never before
An integrated workstation with the HIS and LIS connections further streamlines analysis and reporting. Standardized HL7 protocol and storage capacity extends up to 100,000 easily accessible sample files. The print function has the most flexible options that allow you to print individual sample results and control tests, L-J graphs, or QC lists with any parameters selection.
