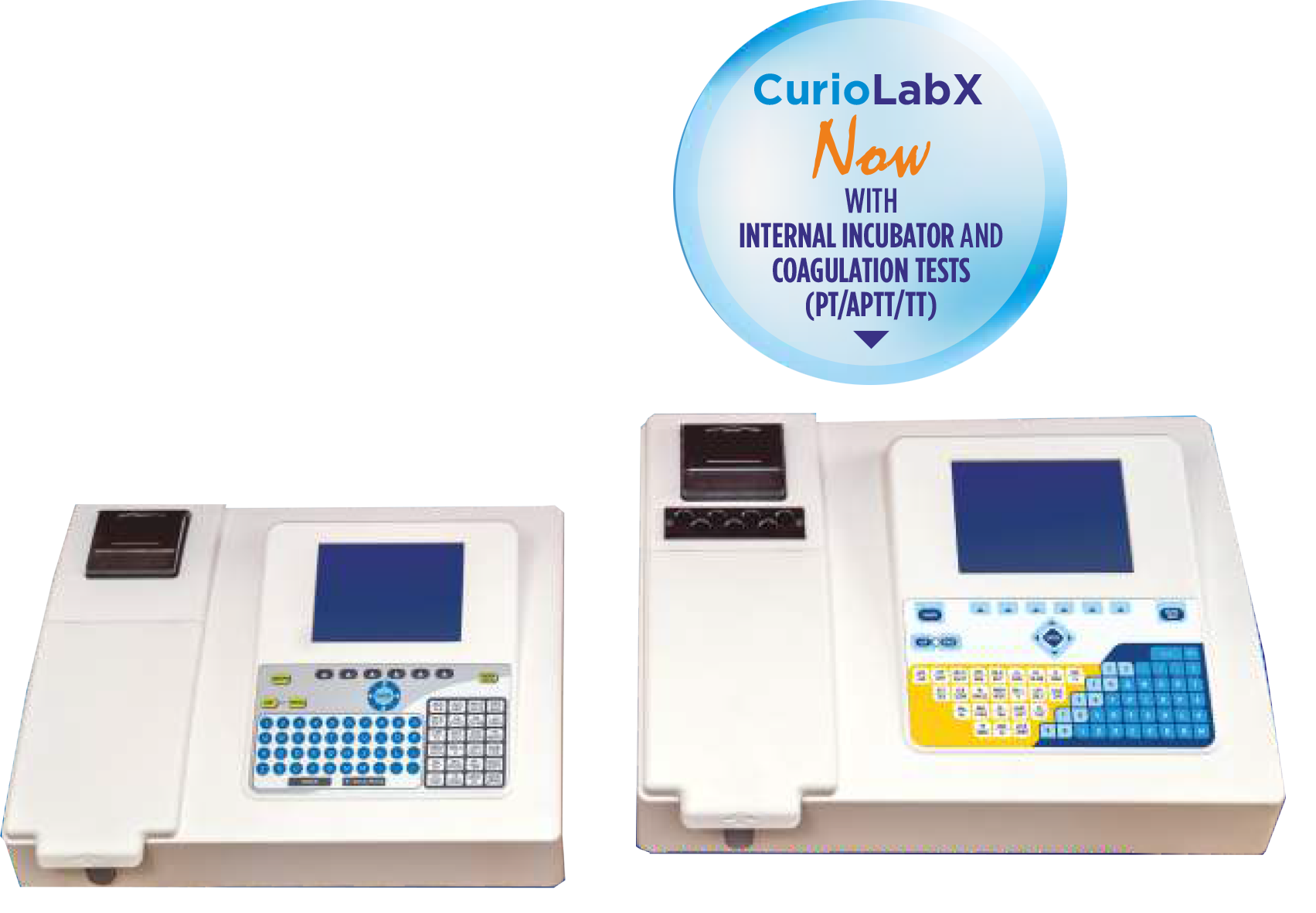

BIOCHEMISTRY ANALYZER
SEMI AUTOMATED BIOCHEMISTRY ANALYZER
₹100000.00₹85000.00
Out of stock
About Analyser
CurioLab is a curious fusion of reliability and performance. Its versatility improves productivity of modern labs through its robust design, intuitive software and hassle free operation.
- Robust and reliable diagnostics solution
- Consistent performance and easy operation
FLEXIBLE
Programmed to analyse endpoint, fixed time and kinetic assays
Storage for 200 user programmable test methods and 10000 test results
Create up to 10 customised test profiles
ECONOMICAL
Low reagent consumption
High quality surface coating ensures long Filter life
Extended lamp life
ROBUST
Low maintenance
Consistent and reliable results
Indian design and manufacturing
OPTIMISED OPTICAL DESIGN
High sensitivity measurements for kinetic and turbidimetric assays (RF, ASO, CRP etc)

LIGHT SOURCE
Halogen Quartz tungsten lamp (6V, 10Watt) Lamp life saving mode (programmable sleep interval) Unique Lamp life enh

ASPIRATION
High precision peristaltic pump Non corrosive tubing ensures long life and accurate aspiration Aspiration air gap and auto empy function after each sample run Minimal chances of carry over
ONE TOUCH ACCESS TO DEDICATED ASSAYS
48 direct access assays

PRINTABLE REAL TIME GRAPH
Real time graph is displayed on sc
Features
SOFTWARE FEATURES
CurioLab software is designed to simplify daily laboratory routine. It's simple and intuitive work flow enhances user eficiency and productivity.

INTUITIVE USER INTERFACE
Six informative screens control operations
Easy navigation through submenus
Requires minimal training

QUALITY CONTROL
Mean, SD, % CV and R calculated for each assay
Levey-Jennings control chart
3 levels per assay
Westgard Rules

CALIBRATION
Factor, one-point, two-point and multi-point
Non linear multi point calibration
Up to 3 replicates per point
Up to 10 calibration points

ERROR DETECTION
Early detection and reporting of errors on screen
Saves time and avoids faulty test runs which saves reagents
Technical Specifications
PHOTOMETRIC MODULE
Seven Narrowband Interference Filters
Filter Wavelengths ( 340 nm to 700 nm )
a.) 6+2 ( Configurable)
b.) 7+1 (configurable)
c.) 12 filters option also available
IAD process ensures long filter life
Wavelength Accuracy : ±2nm
Silicon Photo Diode detector
Absorbance Range : 0.0 – 3.0 A
Resolution : 0.0001 Absorbance Units
Photometric Drift : < 5 mAbs/30min
CV : < 1%
TEMPERATURE OF FLOW CELL/CUVETTE
25°C, 30°C, 37°C
Temperature Stability : ± 0.2°C
DISPLAY
5.7 Inch LCD display screen
High Contrast Display
KEYBOARD
Tactile touch QWERTY keypad
Visual indication on keypad during aspiration
PRINTER
Internal 57mm thermal printer with full graphics printing
MEASURING MODULE
Dual mode ( Flow cell & Cuvette)
High quality Quartz flow cell for precise measurements
30 μl Flowcell volume
Peltier-controlled reaction temperature
External cuvettes (10mm path length)
REACTION VOLUME
Minimum aspiration volume - 300μl
Maximum aspiration volume - 5ml
DIMENSIONS
Length : 422mm - Height : 176mm
Width : 324mm - Weight : 6.5 kg
ANALYSIS METHOD
Endpoint, Fixed time and Kinetic
Sample blanking and Reagent Blanking
Direct Absorbance measurement mode
TEST PROFILES
User defined 10 Test Profiles
10 tests can be added in each profile
UNITS
15 pre-defined measurement units
TEST CHANNELS
48 dedicated assays
Direct access keys for dedicated assays
Open channel capability
200 programmable channels
DATA MANAGEMENT
Storage of up to 10,000 test results
Stores 30 days QC for each Assay
Reagent Blank storage
REPORTS
Search by date, sample ID or Test Name
Calibration Reports, QC results
QC AND CALIBRATION
Daily and monthly QC with data archiving.
INTERFACE
RS 232 Port • USB Port
PC Connectivity (optional)
POWER
Input Voltage Range : 88 - 264 VAC
Frequency Range : 47 - 63 Hz
Power consumption : 75 W max
